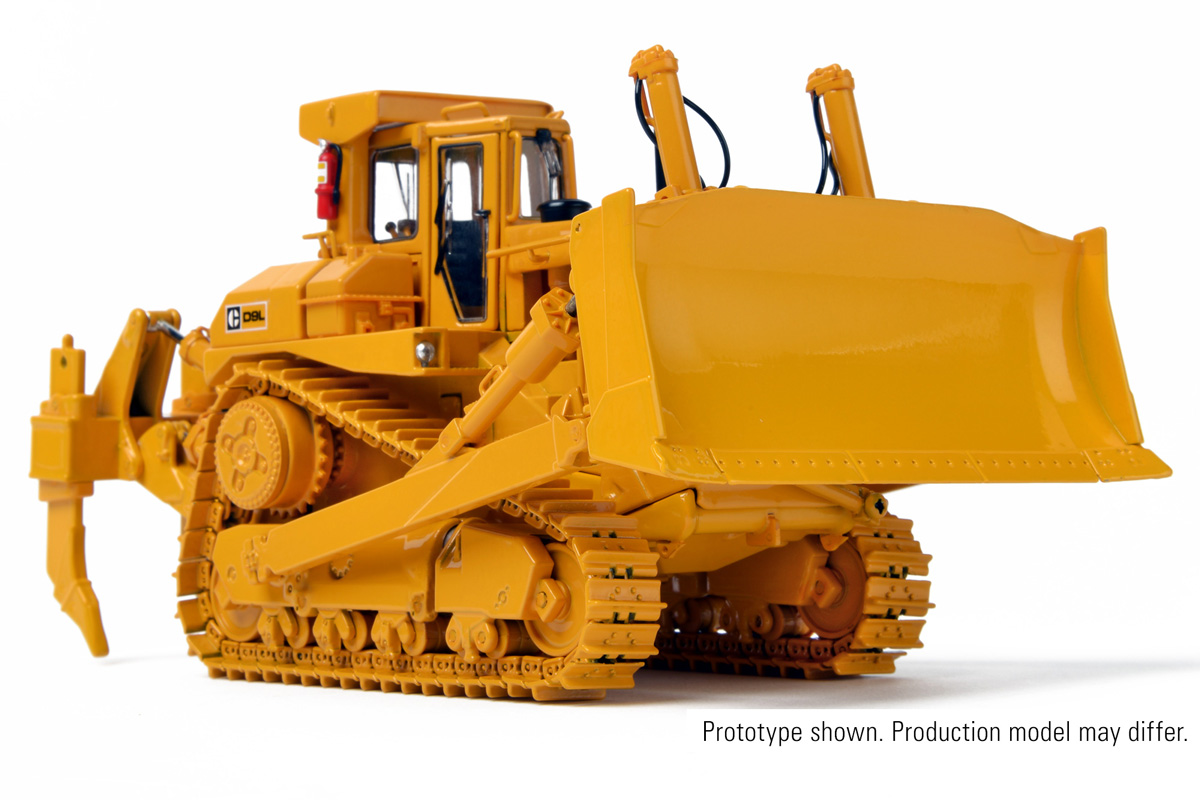

1:48 Cat® D9L Track-Type Tractor with Multi-Shank Ripper – Die-Cast


  • 1:48 Scale
  • Die-cast
  • Production Run: 600
  • Production Year: 2019

Model Dimensions (approximate):

  • Length:  7.3″
  • Width:  3.7″
  • Height:  3.5″

Joining our line-up of 1:48 precision scale die-cast models, the Cat® D9L will soon be released in 2 all-new configurations.  Standing at approximately 3.5″ tall, 7.3″ long, and 3.7″ wide, this configuration features a 9S Straight Blade with Multi-Shank Ripper.  Exceptional detailing on this model includes:

•  Positionable Straight Blade
•  Functional Multi-Shank Ripper
•  Sound Suppressed Cab
•  Opening Cab Doors
•  Fire Bottles
•  Realistic Hydraulic Lines
•  Detailed Instrumentation
•  Control Levers & Pedals
 • Engine Visible Through Open Bay
•  Functional Track Tensioners
•  Raised Drive Sprocket
•  Individually Linked, Free-Rolling Tracks

Paint and markings are approved by the manufacturer for accuracy.

Includes a signed and serial-numbered spec brochure reproduction.


Introduced in 1980 as an upgrade to the D9H, the D9L was equipped with a Cat 3412 turbocharged diesel engine producing 460 flywheel HP at 1,900 RPM.  Featuring a 3-speed planetary Power Shift Transmission, the D9L is capable of top forward speeds of 7.7 MPH and up to 9.6 MPH in reverse.

This machine was also the first D9 to utilize the raised final drive sprocket, which was originally introduced on the D10, to prevent impact loading and increase the life of the power train.  The resilient mounted bogey undercarriage system further reduces impact loading on rollers and roller frames as well as providing improved traction.  The tag link dozer stabilizer brings the blade close to the tracks for excellent machine balance and maneuverability, excellent control of the dozer and high blade penetration and pryout force.

With a wide range of available attachments, including a variety of bulldozers and rippers to match operating conditions, the D9L is unparalleled in its versatility.  Configured with a Straight Blade and Multi-Shank Ripper, the D9L has a capacity of 19.9 yd³, maximum digging depth of 24.7″, and maximum ripper penetration of up to 39.8″ and is ideally suited for tough dozing or reclamation applications.


Additional information


Track-Type Tractor


Cat 3412 Turbocharged Diesel


460 flywheel HP @ 1900 RPM's


Power Shift Transmission

Top Speed (Forward)

7.7 MPH

Top Speed (Reverse)

9.6 MPH


29' 6"


14' 11"


13' 10"

Operating Weight

131,670 lbs.
